Pneumatic Cylinders with Piston Rods

Bring Power and Precision to Your Process with AIRTEC Pneumatic Products

High design meets durability in AIRTEC’s selection of quality pneumatic cylinders with piston rods. Our pneumatic products guarantee precise force control while ensuring enhanced productivity, efficiency and safety in any industrial application. With a range of available models, cylinder types, piston lengths and other features to choose from, our inventory of pneumatic products will support the unique high-force needs of your industrial process.

Product Features

  • 8 mm bore to 320 mm bore
  • Single and Double Acting
  • ISO 6432, ISO 15552, ISO 21287
  • Available in Stainless Steel
  • Multi - Position and High Force
  • Non - Rotating
  • Magnetic Piston

Industry Applications

  • Automotive
  • Aerospace
  • Manufacturing
  • Food and Beverage
  • Pharmaceutical
  • Textile
  • Robotics
  • Machine Tooling
  • Packaging
  • Logistics

Browse our complete line of pneumatic cylinders with piston rods below and find the perfect solution for your process. You can also use our filter function to sort products by key features.

To find out more about our pneumatic products, get in touch with the AIRTEC team by calling (630) 543-0265 or toll-free at (866) 971-0958.

FILTER RESULTS
clear filters
Cylinder Type
Piston Ø
ISO Type
Stainless Steel
Temperature
Other
  • Basic Line
  • Premium Line
54 results

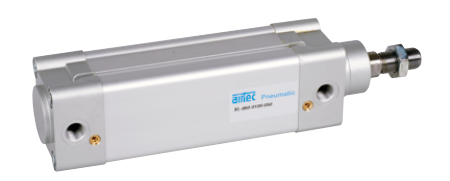

Series XL-Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XL-Double Acting, ISO 15552, (32 mm to 125 mm bore)

Double acting Al-profile cylinder with integrated sensor grooves, adjustable cushions and magnetic piston for proximity sensors. The sensors can be installed directly into the sensor grooves of the Al-profile.

  • XL- Double Acting with Adjustable Cushions, Magnetic Piston
  • XLD- With Metal Scraper
  • XLC- Low Temperature Version
  • XLCD- Low Temperature Version, with Metal Scraper
  • XLXLH- High Temperature Version
  • XLL- Low Friction Version
 SKU #
XL

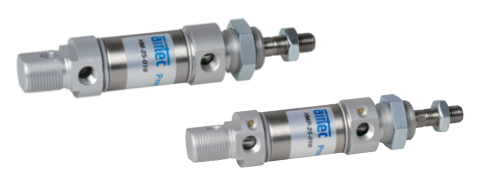

Series HM - Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HM - Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting pneumatic cylinder with magnetic piston and built-in cushioning rings or adjustable cushions. Available in standard stroke lengths and special stroke lengths on request.

  • HM, HMS, HMZ- Double Acting with Magnetic Piston
  • HMP- Double Acting with Adjustable Cushions and Magnetic Piston
  • HDH- Double Acting for High Temperature
  • HDHP- Double Acting for High Temperature with Adjustable Cushions
  • HMDE- Double Acting, Double End Piston Rod with Magnetic Piston
  • HMDPE- Double Acting, Double End Piston Rod with Adjustable Cushions and Magnetic Piston
Series HE- Single Acting, ISO 6432 (8 mm to 25 mm bore) Premium Line
Series HE- Single Acting, ISO 6432 (8 mm to 25 mm bore)

Single acting pneumatic cylinder with built-in cushioning rings.

  • HE- Standard
  • HES- Lateral Air Connection, Rear
  • HEZ- Central Air Connection, Rear
  • Available Normally Retracted or Normally Extended
  • Available with Male or Female Thread

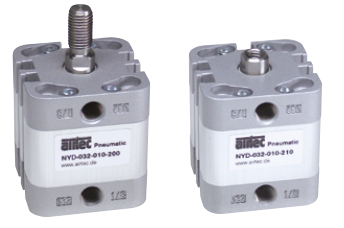

Series NYD- Compact Double Acting, ISO 21287 (20 mm to 100 mm bore) Premium Line
Series NYD- Compact Double Acting, ISO 21287 (20 mm to 100 mm bore)

Compact double acting pneumatic cylinder with magnetic piston for proximity sensors and built-in cushioning rings.

  • NYD- Standard
  • NYDH- High Temperature Version
  • Available with Male or Female Thread
  • Available with Rod on both ends
  • Available in Non-Rotating Version
  • Available with Hollow Piston Rod
Series NYE- Compact Single Acting, ISO 21287 (20 to 100 mm bore) Premium Line
Series NYE- Compact Single Acting, ISO 21287 (20 to 100 mm bore)

Compact single acting pneumatic cylinder with magnetic piston for proximity sensors and built-in cushioning rings.

  • Standard stroke lengths 5, 10, 15, 20, 25, max 60 mm. Additional lengths on request.
  • Available Normally Retracted or Normally Extended
  • Available with Male or Female Thread

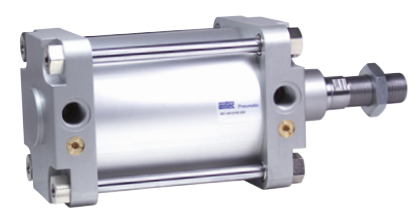

Series XG- Double Acting, ISO 15552 (160 mm to 320 mm bore) Premium Line
Series XG- Double Acting, ISO 15552 (160 mm to 320 mm bore)

Double acting Al-profile cylinder with integrated sensor grooves, adjustable cushions and magnetic piston for proximity sensors. The sensors can be installed directly into the sensor grooves of the Al-profile.

  • XG- Standard
  • XGH- High Temperature
  • XGS- With Trunion Mount
  • Available Double End Piston Rod
 SKU #
XG
Series 88-CQ2, Compact Single or Double Acting (12 mm to 100 mm bore) Basic Line
Series 88-CQ2, Compact Single or Double Acting (12 mm to 100 mm bore)

Double acting pneumatic cylinder with or without magnetic piston for proximity sensors and built-in cushioning rings.

  • Available with or without magnet
  • Available with Male or Female Thread
  • Available with Viton Seals
Series 88-XSI- Double Acting, ISO 15552 (32 mm to 125 mm bore) Basic Line
Series 88-XSI- Double Acting, ISO 15552 (32 mm to 125 mm bore)

Double acting Al-profile cylinder with integrated sensor grooves, adjustable cushions and with or without magnetic piston for proximity sensors. The sensors can be installed directly into the sensor grooves of the Al-profile.

  • Available Double End Piston Rod

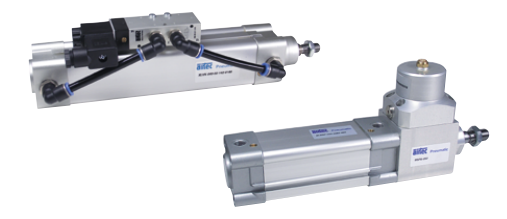

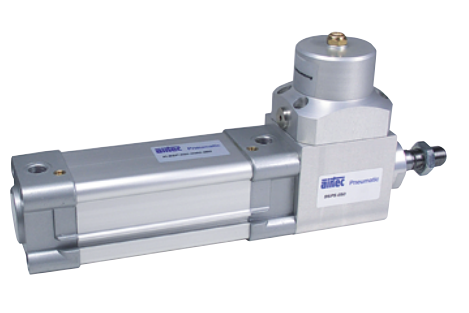

Series XLBSP, ISO 15552 with Brake Premium Line
Series XLBSP, ISO 15552 with Brake

Double acting Al-profile cylinder with adjustable cushions and magnetic piston. It includes an extended piston rod and a pneumatic-hydraulic brake system which is mounted onto the cylinder. The brake should only be applied at piston speed of 0.2 m/s or lower. The system is NC (passive) and is released by applying pressure at the pilot port of the brake. For Static braking applications. Use with XL Series Cylinders

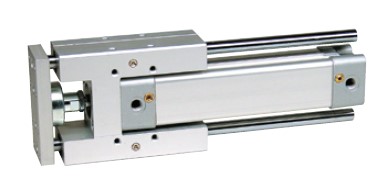

Series LE-Linear Guides Premium Line
Series LE-Linear Guides
  • Linear guides for piston rod cylinders
  • Use with ISO 15552 and ISO 6432 cylinders
  • For cylinders ∅12 to ∅100
  • Ball bearing
  • Bronze bearing
  • H and C type
 SKU #
LE

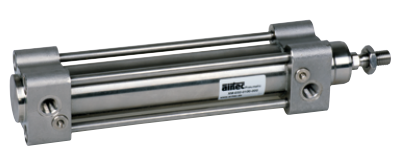

Series XM- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore) Premium Line
Series XM- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore)

Double acting pneumatic cylinder with adjustable cushions and magnetic piston for proximity sensors. 304 Stainless Steel

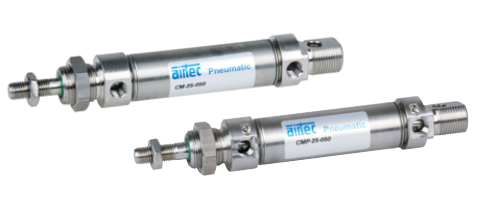

Series CM- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CM- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting pneumatic cylinder with magnetic piston and built-in cushioning rings or adjustable cushions. Available in standard stroke lengths and special stroke lengths on request.

  • CM- Double Acting with Magnetic Piston
  • CMP- Double Acting with Adjustable Cushions and Magnetic Piston
  • CDH- Double Acting for High Temperature
  • CDHP- Double Acting for High Temperature with Adjustable Cushions
  • CMDE- Double Acting, Double End Piston Rod with Magnetic Piston
  • CMDPE- Double Acting, Double End Piston Rod with Adjustable Cushions and Magnetic Piston

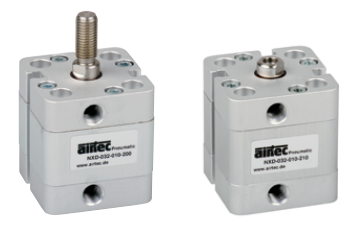

Series NXD-Compact Double Acting (12 mm to 100 mm bore) Premium Line
Series NXD-Compact Double Acting (12 mm to 100 mm bore)

Compact double acting pneumatic cylinder with magnetic piston for proximity sensors and built-in cushioning rings.

  • Available with Male or Female Thread
  • Available with Rod on both ends
  • Available in Non-Rotating Version


Series NXE-Compact Single Acting (12 mm to 100 mm bore) Premium Line
Series NXE-Compact Single Acting (12 mm to 100 mm bore)

Compact single acting pneumatic cylinder with magnetic piston for proximity sensors and built-in cushioning rings.

  • Standard stroke lengths 5, 10, 15, 20, 25, max 60 mm. Additional lengths on request.
  • Available Normally Retracted or Normally Extended
  • Available with Male or Female Thread
 SKU #
NXE-012-020-210
Series CMP- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CMP- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting, adjustable cushioning, with magnetic piston
Series CDH- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CDH- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting, high temperature
Series CDHP- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CDHP- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting, adjustable cushioning, high temperature version
Series CMDE- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CMDE- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting, double end piston rod, with magnetic piston
Series CMPDE- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore) Premium Line
Series CMPDE- Double Acting, ISO 6432, Stainless Steel (16 mm to 25 mm bore)

Double acting, double end piston rod, adjustable cushioning, with magnetic piston
Series HMP- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMP- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, adjustable cushioning, with magnetic piston
Series HDH- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HDH- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, high temperature version
Series HDPH- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HDPH- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, adjustable cushioning, high temperature version
Series HES Premium Line
Series HES

Single acting, normally retracted
Series HEZ Premium Line
Series HEZ

Single acting, normally retracted
Series HMDE- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMDE- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, double end piston rod, with magnetic piston
Series HMPDE- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMPDE- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, double end piston rod, adjustable cushioning, with magnetic piston
Series HMS-Double Acting, ISO 6432, (16 mm to 25 mm bore) Premium Line
Series HMS-Double Acting, ISO 6432, (16 mm to 25 mm bore)

Double acting, with magnetic piston. Lateral air connection, rear

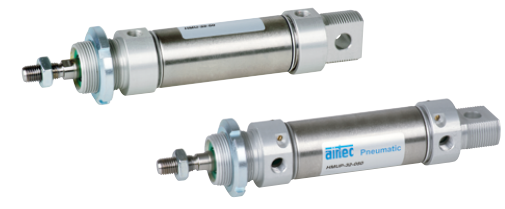

Series HMU Double Acting Round Cylinders Premium Line
Series HMU Double Acting Round Cylinders
Double acting pneumatic cylinder with magnetic piston and built-in cushioning rings or adjustable cushions. Available in 32 and 40 mm bore.
Available Versions:
  • HMU- Double Acting with Magnetic Piston
  • HMUDE- Double Acting, Double Ended Piston Rod with Magnetic Piston
  • HMUP- Double Acting with Adjustable Cushions and Magnetic Piston
  • HMUPDE- Double Acting Double Ended Piston Rod with Adjustable Cushions and Magnetic Piston
Series HMUDE- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMUDE- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, double end piston rod, with magnetic piston
Series HMUP- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMUP- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, adjustable cushioning, with magnetic piston
Series HMUPDE- Double Acting, ISO 6432, (8 mm to 25 mm bore) Premium Line
Series HMUPDE- Double Acting, ISO 6432, (8 mm to 25 mm bore)

Double acting, double end piston rod, adjustable cushioning, with magnetic piston
Series HMZ- Double Acting, ISO 6432, (16 mm to 25 mm bore) Premium Line
Series HMZ- Double Acting, ISO 6432, (16 mm to 25 mm bore)

Double acting, with magnetic piston, Central air connection, rear

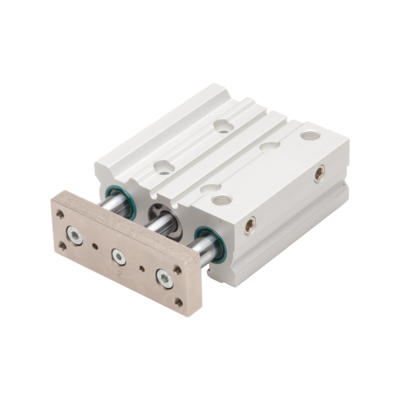

Series LXA Premium Line
Series LXA

Double acting pneumatic cylinder with magnetic piston and built-in cushioning rings. The sensors can be installed directly into the sensor grooves of the Al-profile. The integrated cylinder and guide unit ensures precise and accurate movement. Standard stroke lengths in table of PDF , additional lengths on request.

Available with bronze bushings or recirculating ball bearings.

 SKU #
LXA-G-016-10-250

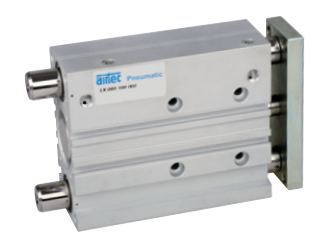

Series LX Premium Line
Series LX

Double acting pneumatic cylinder with magnetic piston and built-in cushioning rings. The sensors can be installed directly into the sensor grooves of the Al-profile. The integrated cylinder and guide unit ensures precise and accurate movement. Standard stroke lengths in table below, additional lengths on request.
Series NYDH Premium Line
Series NYDH

High temperature version
Series NYDK2 Premium Line
Series NYDK2

High force cylinder, double acting, built-in cushioning rings, with magnetic piston (2 x force)
Series NYDK3 Premium Line
Series NYDK3

High force cylinder, double acting, built-in cushioning rings, with magnetic piston (3 x force)
Series NYDK4 Premium Line
Series NYDK4

High force cylinder, double acting, built-in cushioning rings, with magnetic piston (4 x force)
Series NYM2 Premium Line
Series NYM2

Multiple positioning cylinder, double acting, built-in cushioning rings, with magnetic piston (2 strokes, 3 positions)
Series NYM3 Premium Line
Series NYM3

Multiple positioning cylinder, double acting, built-in cushioning rings, with magnetic piston (3 strokes, 4 positions)
Series NYR2 Premium Line
Series NYR2

Multiple positioning cylinder, double acting, built-in cushioning rings, with magnetic piston (2
strokes, 3 positions)
Series XGH Premium Line
Series XGH

High temperature version

 SKU #
XGH
Series XGS Premium Line
Series XGS

With trunnion mount

 SKU #
XGS
Series XLC- Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XLC- Double Acting, ISO 15552, (32 mm to 125 mm bore)

Low temperature version
Series XLCD- Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XLCD- Double Acting, ISO 15552, (32 mm to 125 mm bore)

Low temperature version, with metal scraper
Series XLD- Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XLD- Double Acting, ISO 15552, (32 mm to 125 mm bore)

With metal scraper
Series XLH- Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XLH- Double Acting, ISO 15552, (32 mm to 125 mm bore)

High temperature version
Series XLL- Double Acting, ISO 15552, (32 mm to 125 mm bore) Premium Line
Series XLL- Double Acting, ISO 15552, (32 mm to 125 mm bore)

Low friction version
Series XM4- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore) Premium Line
Series XM4- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore)

Double acting pneumatic cylinder with adjustable cushions and magnetic piston for proximity sensors. AISI 316 Stainless Steel (1.4401)
Series XM4H- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore) Premium Line
Series XM4H- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore)

Double acting pneumatic cylinder with adjustable cushions and magnetic piston for proximity sensors. AISI 316 Stainless Steel, high temperature version.
Series XMH- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore) Premium Line
Series XMH- Double Acting, ISO 15552, Stainless Steel (32 mm to 125 mm bore)

Double acting pneumatic cylinder with adjustable cushions and magnetic piston for proximity sensors. AISI 304 Stainless Steel, high temperature version
Series XLVK- Double Acting, ISO 15552, with Valve (32 mm to 125 mm bore) Premium Line
Series XLVK- Double Acting, ISO 15552, with Valve (32 mm to 125 mm bore)

Double acting Al-profile cylinder with integrated sensor grooves, adjustable cushions and magnetic piston for proximity sensors. The sensors can be installed directly into the sensor grooves of the Al-profile. The cylinder includes a 5/2- or 5/3-way valve with a high flow rate and compact dimensions. Standard stroke lengths in table below, additional lengths on request.
Series ZS and 88-ZS-C Basic Line
Series ZS and 88-ZS-C

Proximity sensors

 SKU #
ZS-5600, ZS-5601, ZS-5700, ZS-5701, ZS-6700, ZS-6701, 88-ZS-C-5600, 88-ZS-C-6700, KA-30, KA-50, KA-51, KA-100, KA-101
Series NYSE Premium Line
Series NYSE

Single acting compact cylinders with magnetic piston, built-in cushioning rings and return spring.

"In conclusion, the results show, that for the 2-way steam supply valve on our curing presses, the Rocky TPC-2212-25, outperformed the other valves significantly, with no leakage through the valve seat or stem when cycled to the equivalent to 20 years of service"

John J.

John J., Global Tire Company

"Just a note of thanks to AIRTEC for the excellent product, Rocky Valves ™, and for your support. As you know we have surpassed the goal of 12 million cycles on these valves in extremely harsh operating conditions. We are confident that these valves might even reach, and maybe surpass, the elusive 15 million cycles mark"

Luc R.

Luc R., Global Tire Company

How Can We Help You?

Contact Us
