Rodless Cylinders

Rodless Cylinders for Smooth Performance & Precise Positioning

AIRTEC's two rodless cylinder series come with a compact and streamlined design to ensure long stroke length and linear motion for industrial processes requiring precise positioning and smooth motion. Critical for operations that value space, speed and precision above all else, our rodless cylinders are ideal for automation, material handling and transport systems, among others. Enjoy low maintenance and high reliability with AIRTEC rodless pneumatic cylinders as you boost the productivity of your industrial operation.

Product Features

  • 25, 32, 40, 50, 63 mm bore
  • Stroke Lengths up to 8000 mm
  • K Series up to 30% shorter for the same stroke

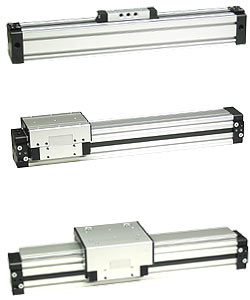

  • Standard, Slide Guide and Roller Guide options
  • Polyurethane seal system

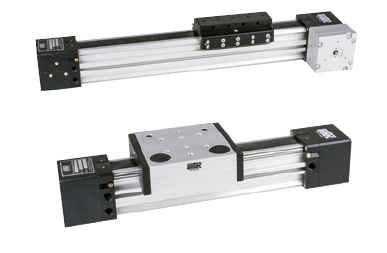

  • ZR Series Toothed-Belt option for Synchronization or Positioning
  • Magnetic Piston
  • K, S, SG and KG ship in as little as 24 hours!

Industry Applications

  • Automotive
  • Aerospace
  • Food and Beverage
  • Pharmaceutical
  • Packaging
  • Printing
  • Textile
  • Woodworking
  • Metalworking
  • Robotics

Browse our complete line of rodless cylinders below and find the perfect solution for your process. You can also use our filter function to sort by key features.

To find out more about our rodless cylinder series, get in touch with the AIRTEC team by calling (630) 543-0265 or toll-free at (866) 971-0958.
